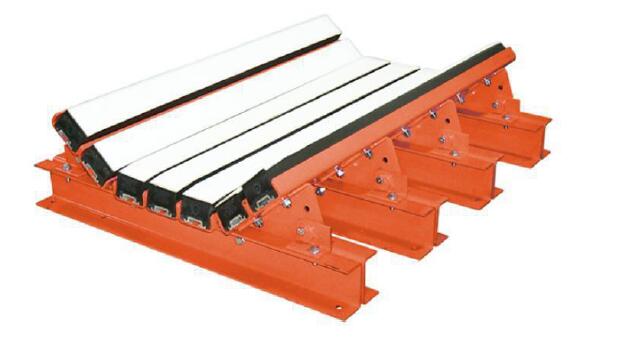

Product Image:

Product functions and uses: The buffer bed is installed at the receiving area of the belt conveyor transfer point, which is used to reduce the impact damage to the belt when the material falls, which can effectively protect the belt and extend the
Long belt life. When used with the anti-spill skirt, it can effectively seal both sides of the falling point to prevent material and dust from overflowing.

Features:
1. The surface of the buffer strip adopts imported UHMW raw materials, which has a large molecular weight, a small coefficient of friction, and excellent wear resistance;
2. The main body of the buffer strip is highly elastic natural rubber, which reduces the impact damage of the falling materials on the belt;
3. The contact between the buffer strip and the belt is an overall flat contact, can it effectively avoid puncture damage to the belt when a sharp object falls;
4. The buffer strip adopts chute extraction structure, which is convenient for quick installation and maintenance on site;
5. The wings on both sides of the buffer bed are designed with adjustable groove angles, which can meet the angle adjustment within the design requirements;
6. The buffer bed structure size is custom designed according to the customer's site requirements, which can well meet the site conditions requirements;
7. The buffer bed carrying beam adopts double U steel structure, which is firm and reliable and can withstand the impact of large materials without deformation;
8. The structure of the buffer bed frame adopts advanced manufacturing technology, and its dimensional processing accuracy can reach ± 0.50mm;

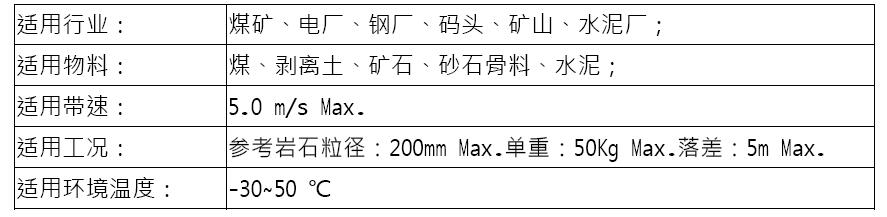

Applications:

Performance parameters of buffer bar:

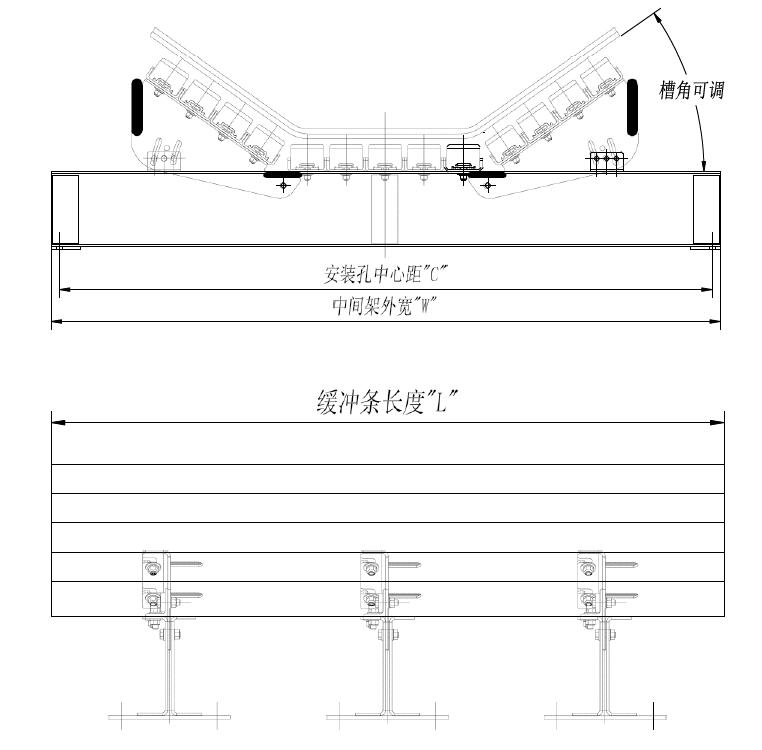

Product and installation diagram:

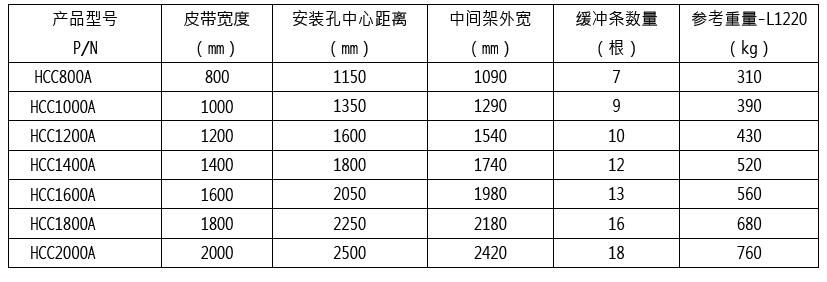

Product model list:

Remarks:
 Common buffer strip length: 1000, 1220, 1400, 1525, 1600 (mm), can provide non-standard buffer strip size customization service.
 The wing slot angle can be adjusted steplessly, and it can be designed to be adjusted within the range of 20 to 45 according to the requirements of the site conditions.
 Can provide flame retardant and antistatic buffer strip products that meet the requirements of underground coal mine conditions, with coal safety (MA) certificate.
